오션엔지니어링

Business Field

Eco-friendly low-energy air-conditioning and
refrigeration technology realizes a happy future for everyone.

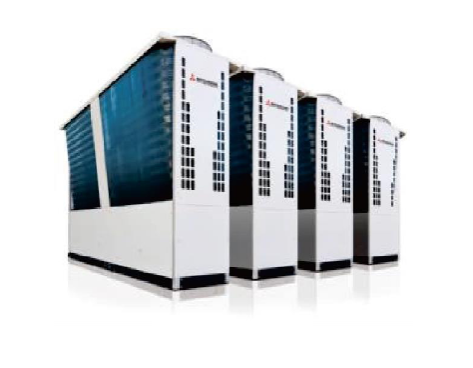

Heat Pump Chiller / CO2 Heat Pump Water Heater

HAVC systems for industries and
environmentally-friendly buildings that retrieve
heat energy from the air

  • Type

    MSV1501P2C-K (50HP)

  • Cooling and heating capacity

    150KW

  • Rated consumption (Cooling/heating)

    46.4KW / 45.5KW

  • Cold/hot water

    4℃ / 60℃

  • Pipe diameter

    65A

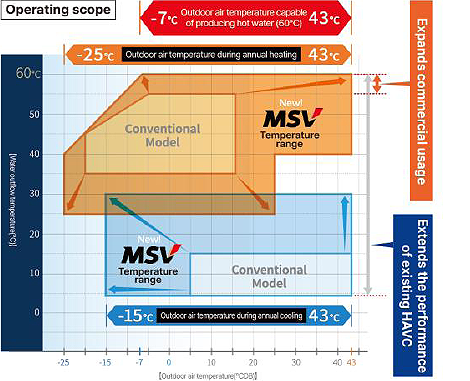

  • Operating conditions

    -25℃ ~ 43℃

Application Scope

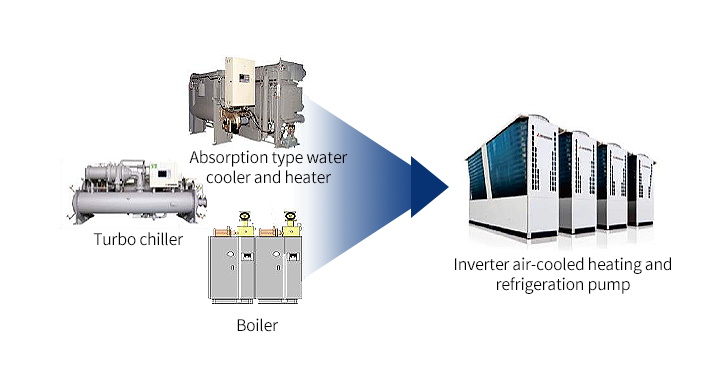

  • HAVC Enhances capabilities of absorption-type water cooler and heater
  • Commercial Hot spring and swimming pool
  • Industrial Cleaning, painting, and drying process
